Speakers
Ceiling speaker ACC-6.5C
Ceiling

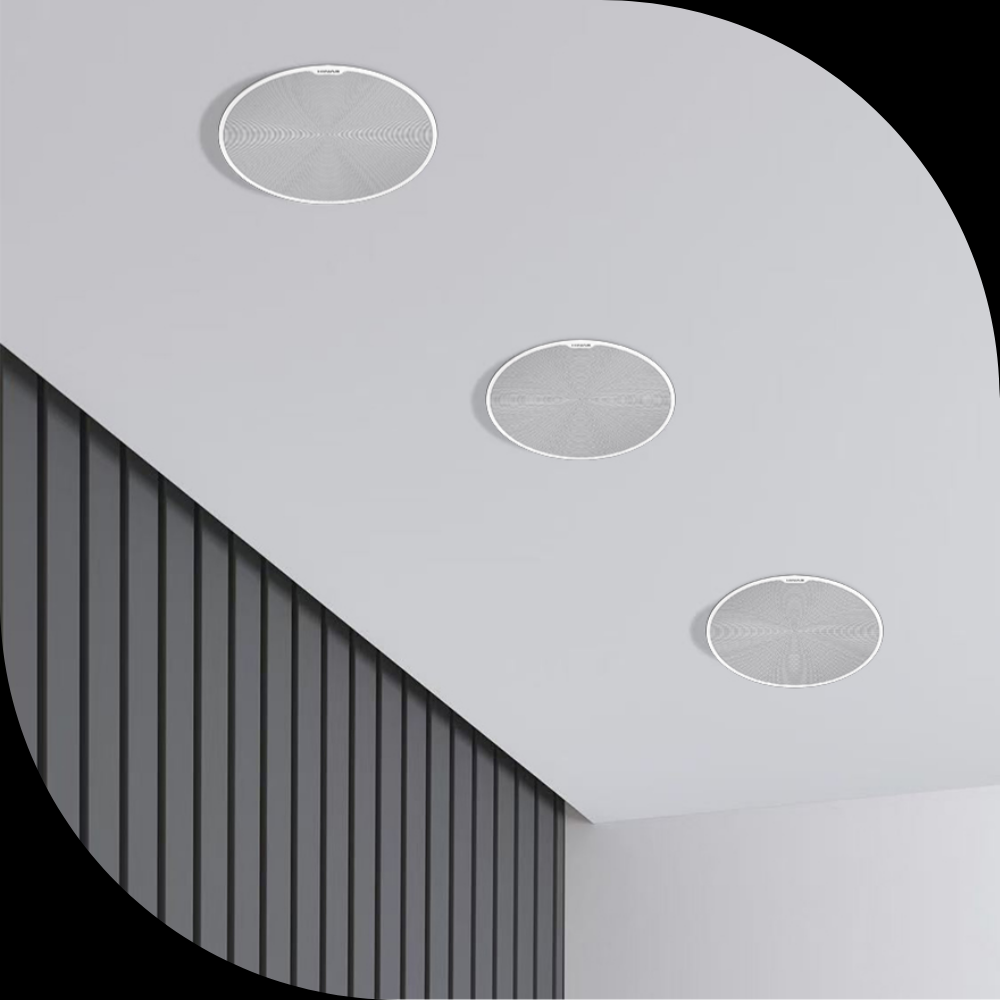

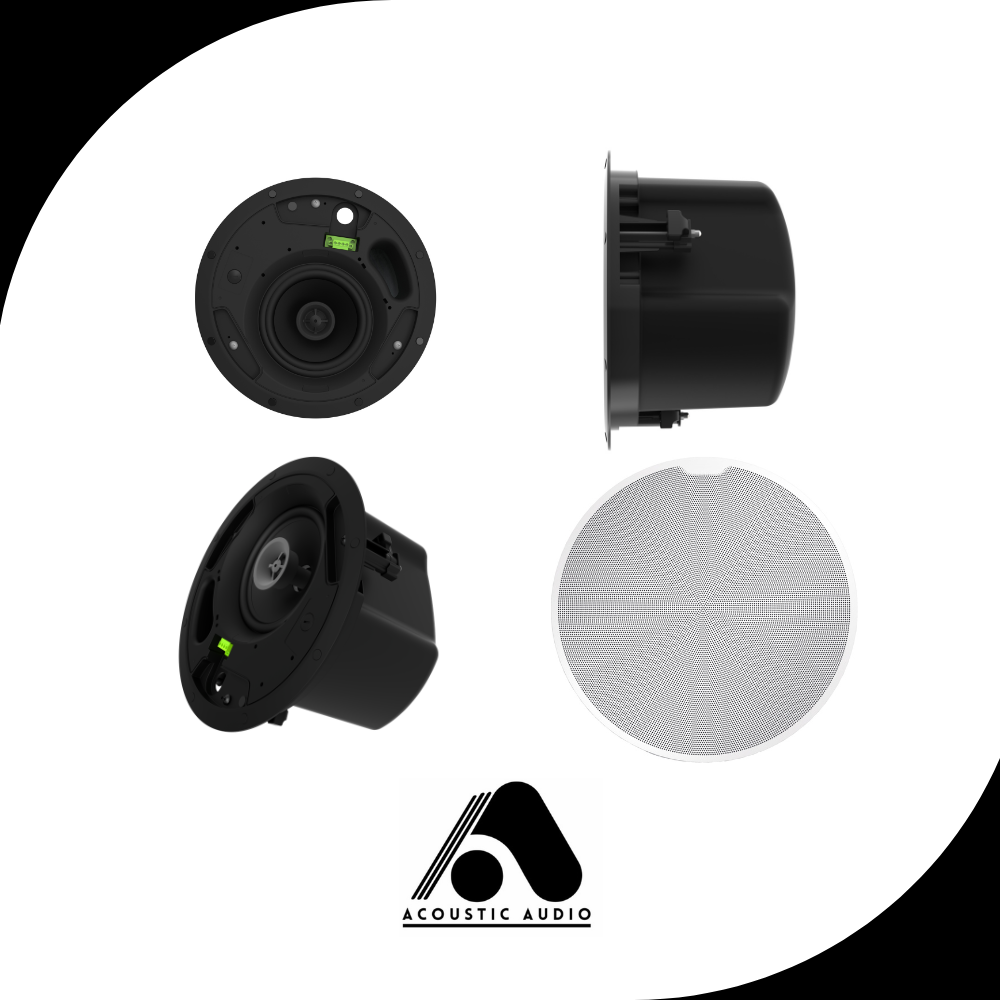

Composed of one 1-inch dome tweeter and one 6.5-inch mid-bass unit. With a sensitivity of up to 95dB and an output power of 100W, it has high sound pressure level output and large dynamic response. The front wiring design is convenient for system setup. With 8 N42 high-strength magnet device mesh covers, it can be installed in a narrow ceiling environment and is suitable for a wide range of environments.
Download our complete product catalog in PDF format.
📄 Download CatalogSpecifications
Tweeter Unit
1x1" dome
Mid-bass Unit
1x6.5"
Rated Impedance
8Ω
Rated Power
100W (400W, PEAK)
Effective Frequency Range
75Hz - 20KHz
Sensitivity (1m/1W)
95dB
Max SPL
113dB
Mesh Cover Material
Metal Mesh
Rear Shell Material
Iron
Net Weight
4.37kg
Packaging Weight
5.9kg
Installation Size
Total height 197mm, Embedding depth 176mm, Installation thickness 10-50mm, Opening diameter 270-280mm, Speaker outer diameter 316mm
