Speakers

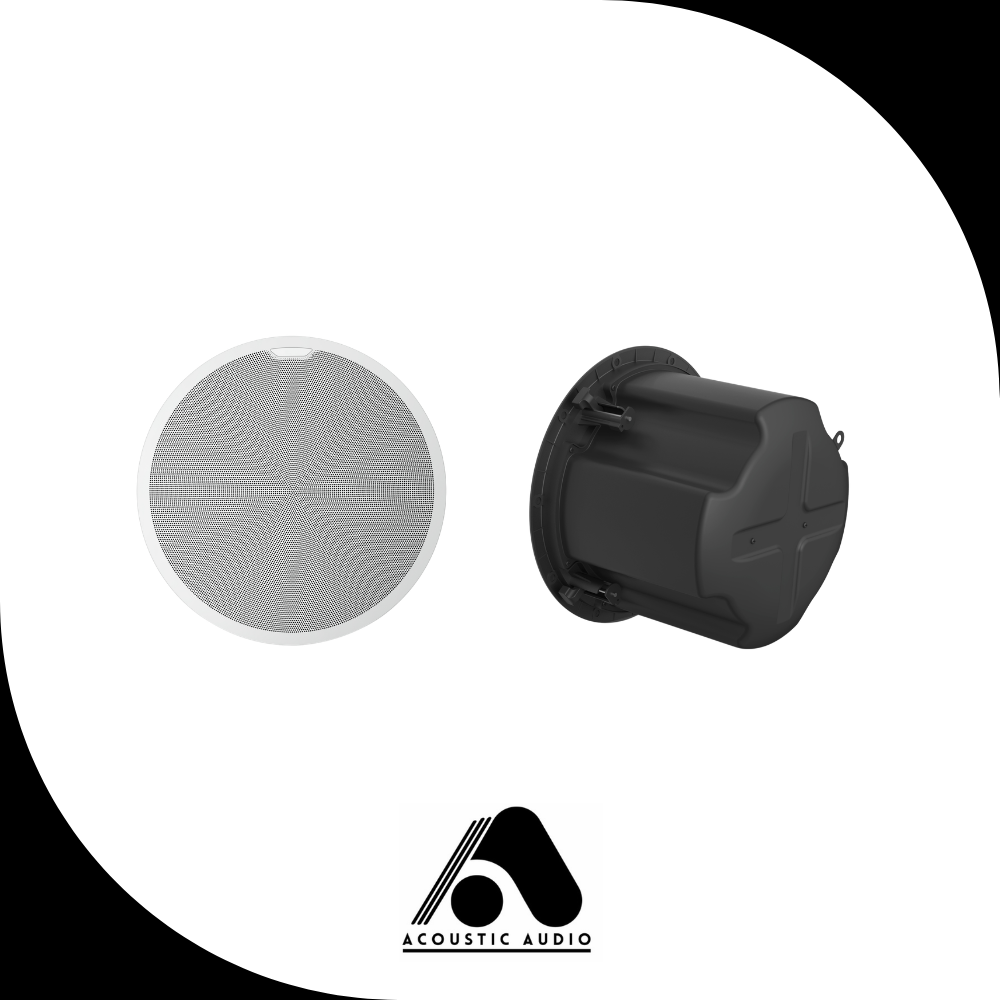

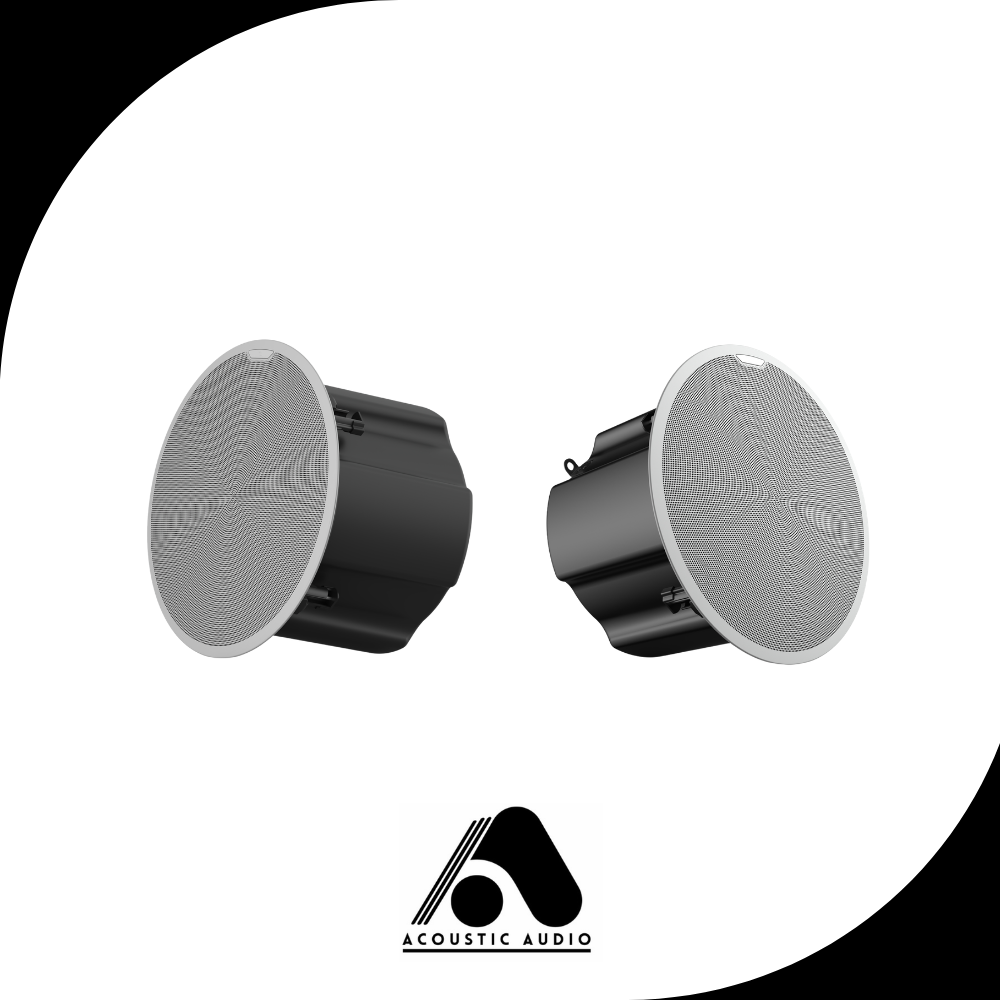

Ceiling Speaker ACC-8C
Ceiling
8-inch coaxial unit, sensitivity 81dB, output power 150W, with high sound pressure level output and large dynamic response. Front wiring design, convenient system construction. Designed with 10 N42 high-strength magnets to install the grille, it can be installed in a narrow ceiling environment and is suitable for a wide range of environments.
Download our complete product catalog in PDF format.
📄 Download CatalogSpecifications
Type
8-inch In-Ceiling Subwoofer
Unit Composition
1x8" Subwoofer
Input Mode
8Ω
Rated Power (8Ω Constant Impedance)
150W (300W, PEAK)
Effective Frequency Range
40Hz~1KHz
Sensitivity Level (1m/1W)
90dB
Grill Material
Metal Mesh
Rear Shell Material
Iron
Mounting Clips
Zinc Alloy Clips
Terminals
Front-mounted Phoenix Terminals
Mesh Mounting
At least 10 N42 high-strength magnets for attachment
Safety Devices
Reinforced speaker mounting, rear barrel steel wire safety rope, mesh safety rope
Grill Process
Etched
Installation Dimensions
Total height 258.1mm, Embedding depth 243.2mm, Installation thickness 10-50mm, Opening diameter 320mm, Maximum outer diameter of mesh 375mm
