Speakers

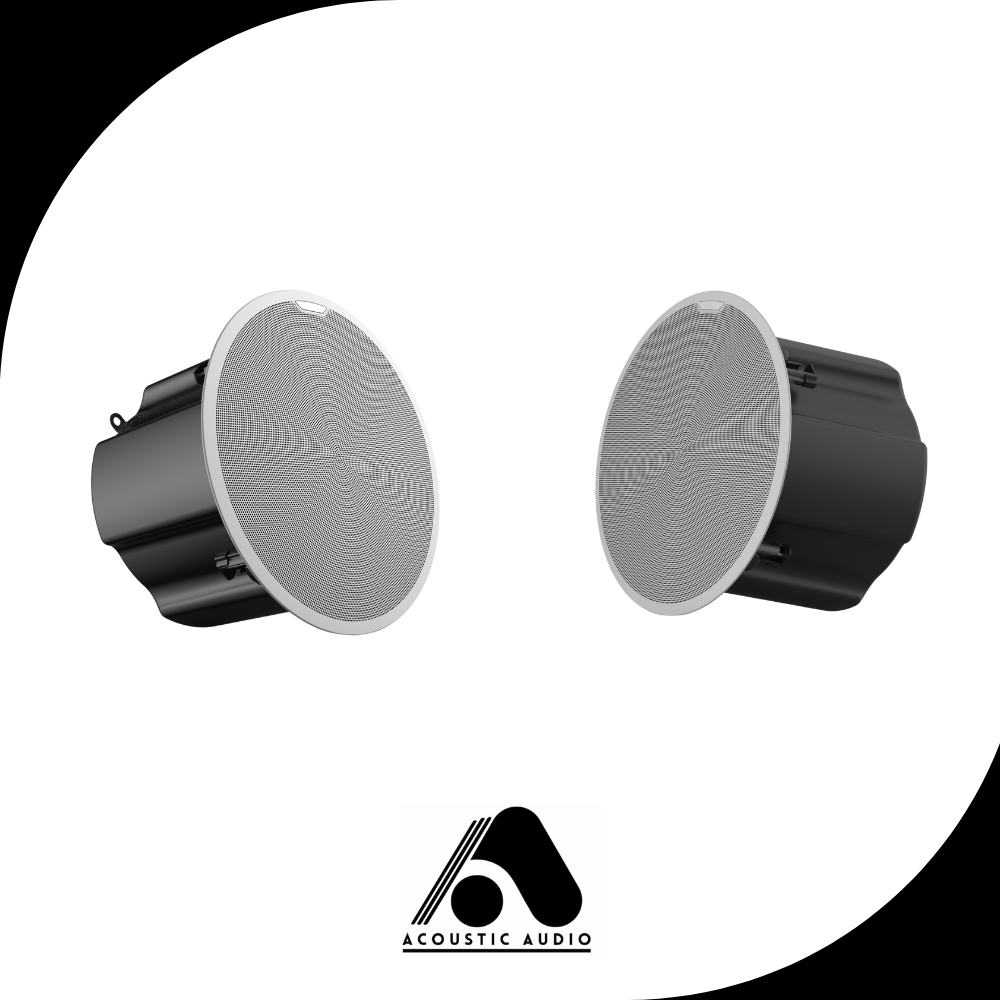

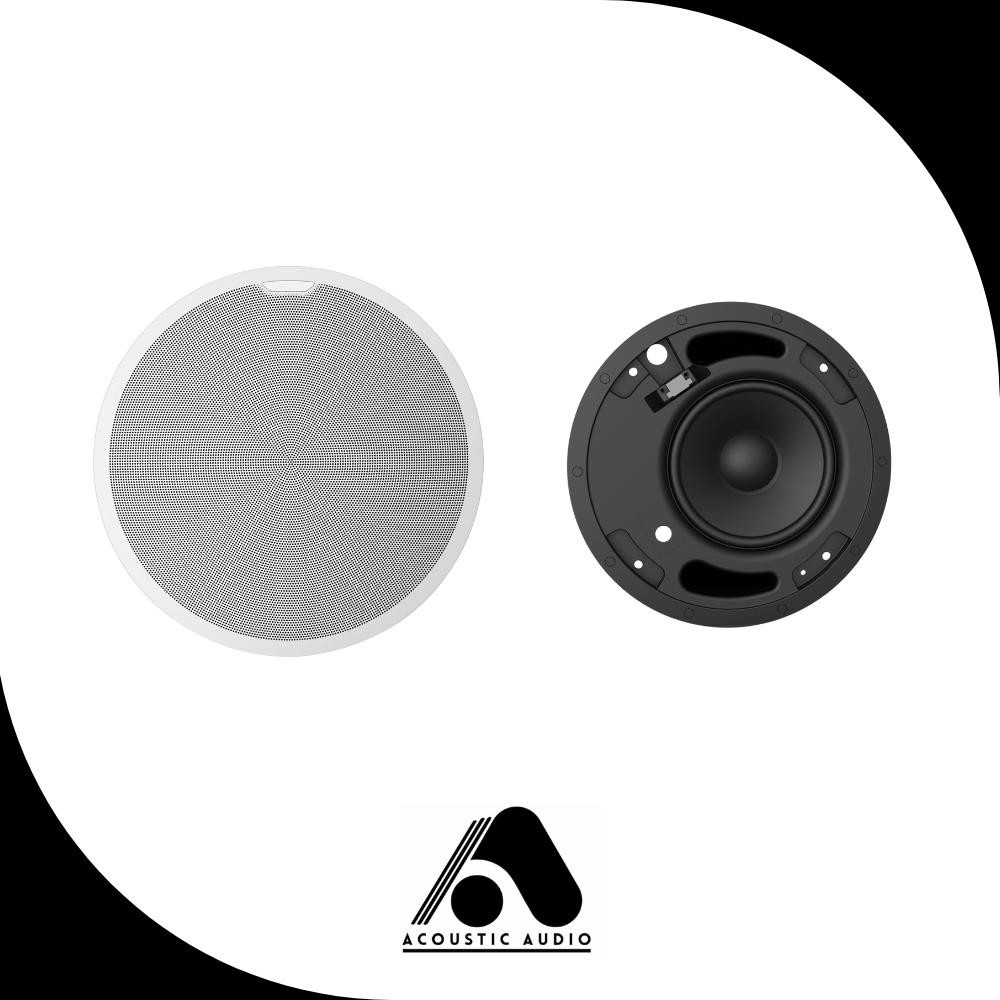

Ceiling Subwoofer ACC-8C SUB
Ceiling
8-inch coaxial speaker, front wiring design, convenient system construction. Designed with 10 N42 high-strength magnets, mesh, metal buckle, four-layer installation protection. It has high sound pressure level output and large dynamic response.
Download our complete product catalog in PDF format.
📄 Download CatalogSpecifications
Unit Composition
1x8" + 1x1" neodymium magnetic tweeter (coaxial)
Input Mode
8Ω
Rated Power (8Ω Fixed Resistance)
80W (160W, PEAK)
Effective Frequency Range
65Hz~20KHz
Diffusion Angle
120° (conical)
Sensitivity (1m/1W)
92dB
Max SPL
115dB
Mesh Material
Metal Mesh
Rear Shell Material
Iron
Installation Dimensions
Total height 258.1mm, Embedding depth 243.2mm, Installation thickness 10-50mm, Opening diameter 320mm, Maximum outer diameter 375mm
