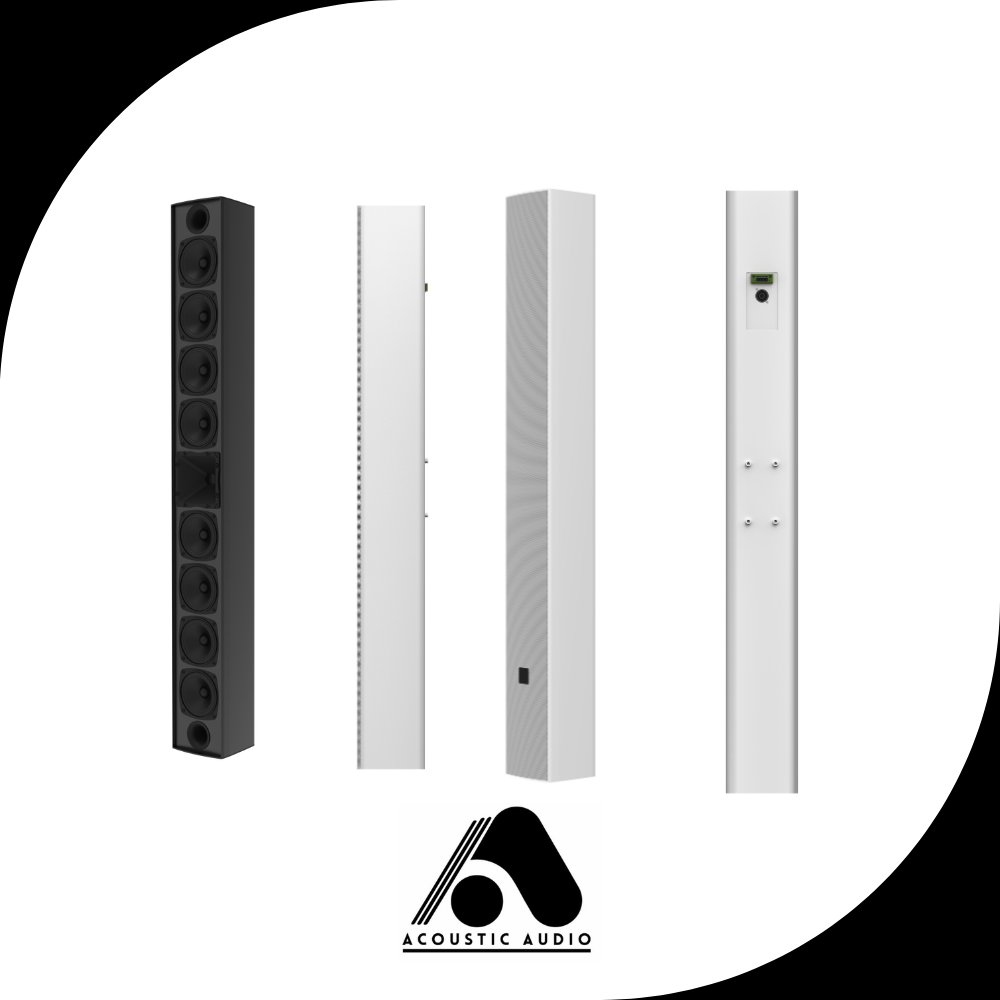

ACC-804-P
Speakers

ACC-804-P

Ceiling

Product Overview: Designed for speech reinforcement systems in medium to large-sized video conference rooms, digital courtrooms, conference centers, lecture halls, and tiered classrooms; and for background music systems in various architectural spaces such as churches, museums, airports, train stations, plazas, transportation hubs, and public areas.Features: High-performance array sound columns provide excellent sound reinforcement in complex environments with high natural reverberation coefficients, echoes, and architectural obstructions. Features a precise 20-degree vertical diffusion angle and a uniform and symmetrical 160-degree horizontal diffusion angle. Especially suitable for use in medium to long-distance sound reinforcement environments in various indoor architectural spaces.

Have questions about this product?

Contact Support

Specifications

Woofer 8x4" neodymium magnet
Tweeter 1x1"
Effective Frequency Range 100Hz~20kHz
Rated Impedance
Rated Power 440W (1760W, PEAK)
Sensitivity (1m/1W) 94dB
SPL 117dB
Diffusion Angle Vertical 20°, Horizontal 160°
Cabinet Material Aluminum Alloy
Cabinet Color Black / Silver White
Garnish Material Metal Mesh
Mounting System Adjustable Angle Mounting Bracket
Connectivity 1 NL4 jack (+1/-1) + 1 Phoenix Terminal
Dimensions (H x W x D) 1140 × 134 × 153 mm
Net Weight 8.2kg
Package Weight 9.5kg

Applicable

conference room

Religious Places

Others
